LINEDO 50
983211.002.3

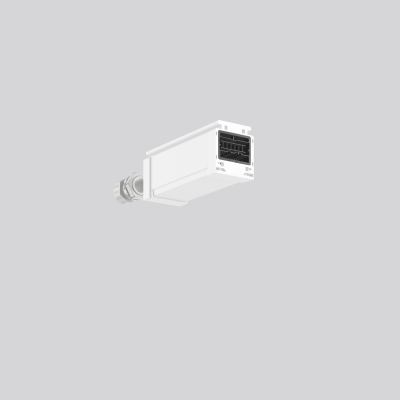

Continuous line luminaire, traffic white (RAL 9016)
Initial power feed, 7-pole, connection plug. Housing, profiled steel plate, coated. Cover: plastic, white. LINEDO plug system, plastic, black. 1 cable gland (M25). Cable gland on side or on top. Convenient connection with flat connector.
Technical Specifications
| Length L | 150 mm |
|---|---|
| Width B | 53 mm |
| Height H | 59 mm |
| Weight | 264 g |
| Voltage | 220 - 240 V / 50 Hz, 60 Hz |
| Type of protection | IP 40 |
| Protection class | I |
| Filament test | 650 °C |
| Impact resistance | IK03 |
| Ambient temperature | -20 °C bis + 50 °C |
| Conformity mark | CE |
