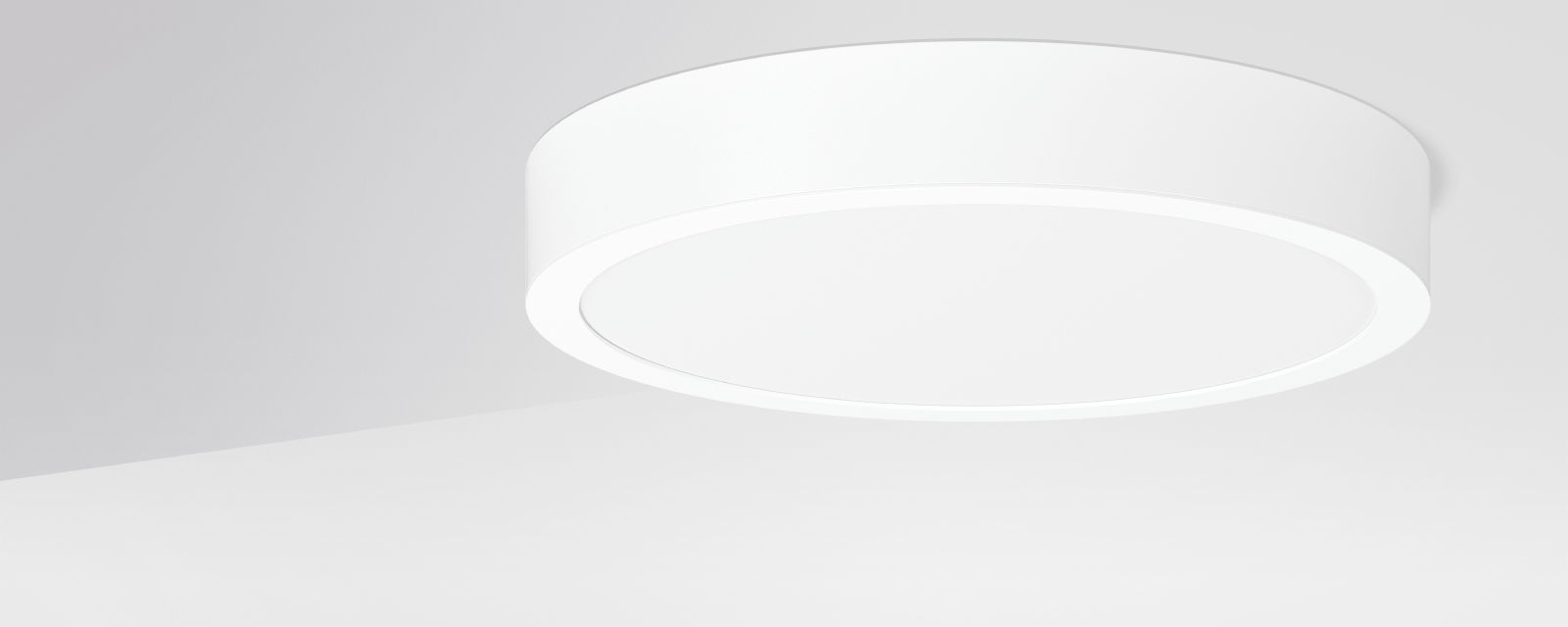

TOLEDO FLAT+ round – Surface mounted downlights

MultiLumen: Luminous flux adjustable in different steps

MultiColour: Colour temperature adjustable in different steps

Perfect for office areas (RUG ≤ 19) and environments with computer screens in accordance with EN 12464-1.

Fast and easy installation.

These luminaire series are developed in Germany and tested in our in-house laboratories.

Protected against solid particles with a diameter ≥ 1.0 mm
Protected against access with a wire
No protection

Variety meets multifunctions

TOLEDO FLAT+ is a real all-rounder - not only figuratively but literally: the versatile downlight scores with its flexible MultiColour and 4-steps adjustable MultiLumen function. Available in recessed and surface-mounted versions, the luminaire opens up a remarkable number of application areas with its seven sizes in round and square design, two diffusers and two housing colours.
The entirety of the technical refinements, the outstanding efficiency, the wealth of variants and, last but not least, the minimalist design make TOLEDO FLAT+ a favourite in the downlight segment - and thus a true all-rounder for the commercial and private sectors that is unparalleled in terms of ease of use and economy.

Brochure

Download PDF

Shallow recessed depth. Suitable for ceiling thickness of 1 mm up to 20 mm.

HF motion detector EASY for direct setting of the sensor via buttons, also with master-slave wiring option.

Versions with Casambi smart+free Bluetooth^® control for wireless network and operation using Android / iOS devices, free app available for download.

LED backlight technology for homogeneous illumination of the entire light-emitting surface.

MultiColour: Colour temperature individually adjustable either 3000 K or 4000 K.

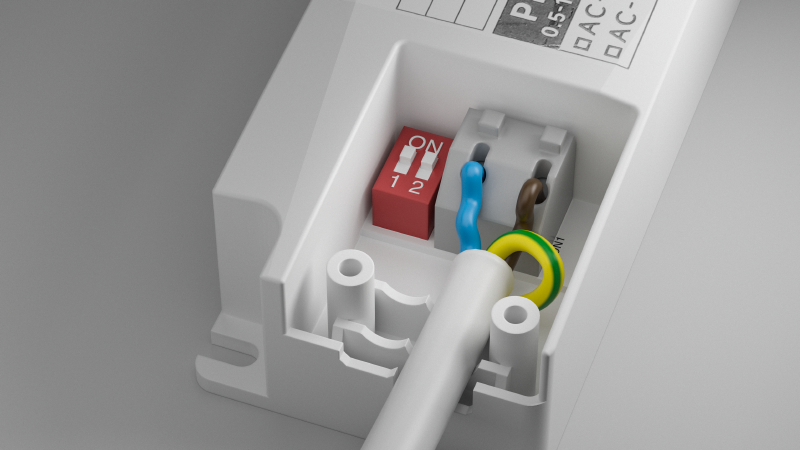

Very easy installation thanks to plug & play connection system (Quick Connector).

Perfect for office areas (RUG ≤ 19) and environments with computer screens in accordance with EN 12464-1.

Tunable white versions, dynamically adjustable from 2700 K to 6500 K. Ideal for use as part of the Human Centric Lighting concept in connection with RZB light management systems.

DALI versions suitable for through wiring as standard.

MultiLumen: 4-step adjustable luminous flux.

Warm white or cold white light

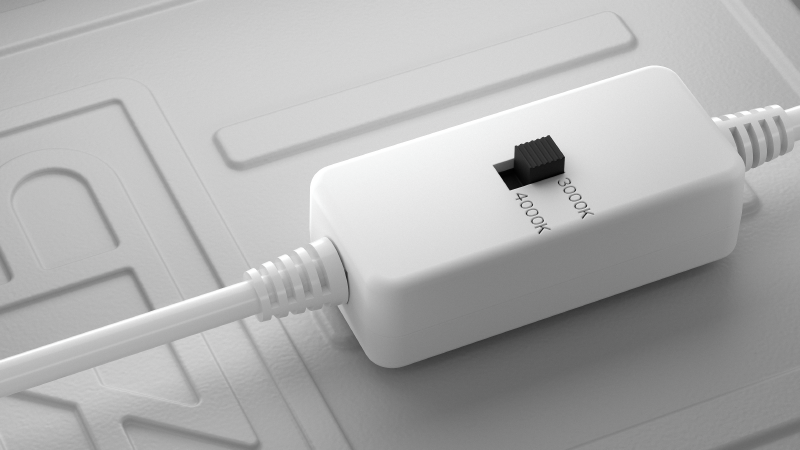

With the MultiColour function, a switching element can be used to select between two light colours. If requirements change, the light can be adjusted quickly and easily.

Adjust me

The MultiLumen function also stands for adaptability and economy. It enables simple switching between four luminous flux packages via DIP switch. In this way, the luminaire can be adjusted for changing lighting requirements without much effort.

Too much glare? Not with me

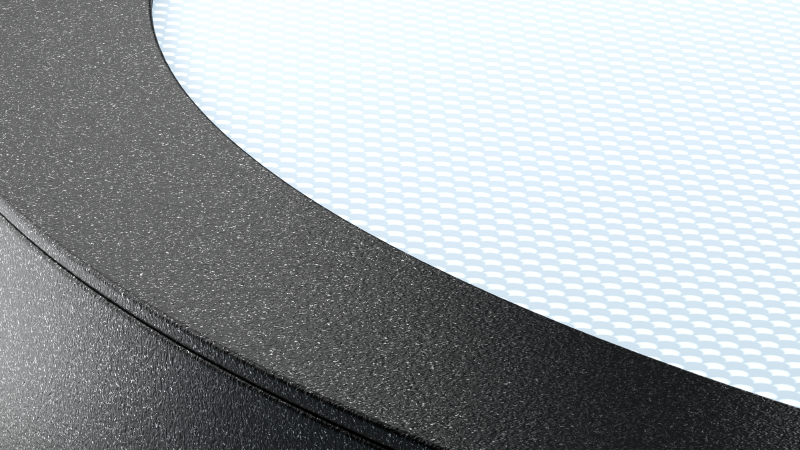

The common use of smartphones, tablets or laptops requires glare-free light, not only in the office. A pleasant lighting atmosphere with reduced direct glare is therefore desirable in every environment in the future. The microprismatic diffuser ensures glare-free light distribution in the room and is therefore ideal for a wide range of screen-based work.

Experience TOLEDO FLAT+ in action...

TOLEDO FLAT+ in application

Architecture

Versatile: Extra flat surface-mounted downlight in four sizes round and three sizes square.
Advantageous: Design continuity to the general lighting product range.
Design-oriented: Minimalist design. Very low installation height.
Applicable: Corridors, side rooms, hotels, restaurants, conference rooms.

Lighting planning

Anti-glare: Versions suitable for office areas and computer workstations.
Homogenous: Diffuser made of non-yellowing plastic (PMMA) opal or microprismatic.
MultiLumen: 4-step adjustable luminous flux. Only for self-contained luminaires.
MultiColour: Colour temperature individually adjustable either 3000 K or 4000 K.
Ideal: Several monitoring options possible.
