© RZB Lighting
MultiLumen: Luminous flux adjustable in different steps
Perfect for office areas (RUG ≤ 19) and environments with computer screens in accordance with EN 12464-1.
Particularly suitable for the requirements of treatment rooms in healthcare facilities, in accordance with EN 12464 (RUG ≤19, CRI >90).
The Cyanosis Observation Index (COI) describes the quality of the light
spectrum of a luminaire for suitability for medical applications. Luminaires with
a standardised COI of less than 3.3 are particularly suitable for reliable detection of cyanosis.
DALI is the classic light bus and is ideal for the simple and central
light management
Luminaires: Acquisition and forwarding of status and energy data. Lighting management systems: Forwarding of luminaire data to cloud services possible
For high hygienic requirements. Diffuser with smooth surface on the room side for low sensitivity to dirt and easy cleaning.
Luminaires made of impact resistant polycarbonate
HACCP | Luminaires with this symbol are suitable for use in the food and beverage industry. For precise instructions on the use of our products in this context, please see the declaration of conformity, which you can find in the download area for the corresponding product under rzb-lighting.com.
This symbol indicates that individual luminaires of a series are available as emergency luminaires and have been tested respectively
Dust-tight
Full protection against contact
Protection against jets of water (nozzle) from any angle
Full protection against contact
Protection against jets of water (nozzle) from any angle
IK06: Impact resistance 1 Joule

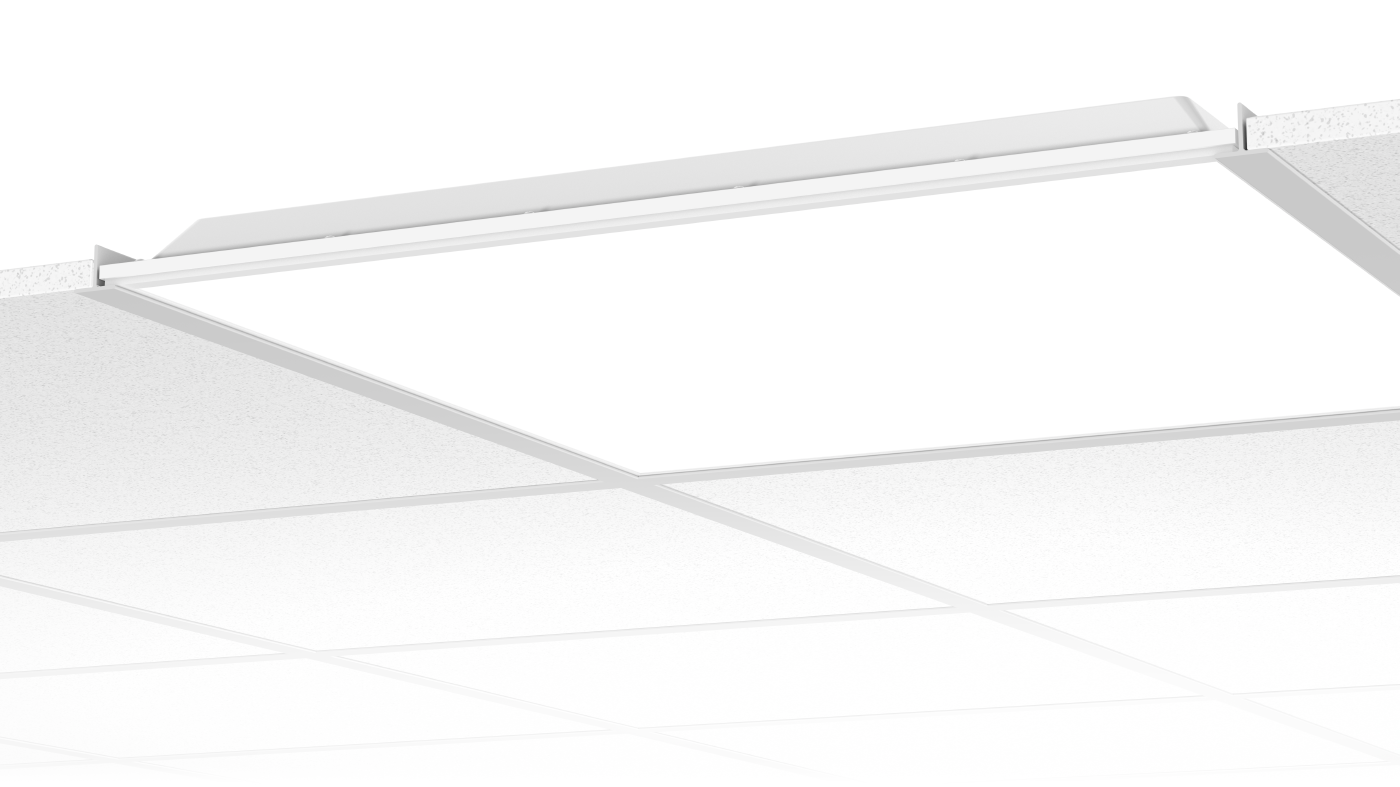

PARLEDO
A clean solution with IP 65.
The term “a clean model” has more than one meaning when used in connection with the new PARLEDO. The admiration does not only apply to the luminaire itself, which can undoubtedly serve as a model in terms of aesthetic reduction with a seemingly frameless appearance. The high degree of protection IP 65 on both sides of the luminaire and control gear predestines the easy-to-clean light surface with smooth microprismatic PC diffuser for use with high hygienic requirements such as in the health care sector in treatment, examination and therapy rooms as well as in laboratories.
Thanks to its MultiLumen function and excellent glare control, PARLEDO is ideally suited for standard-compliant use at VDU workstations, even at high luminous flux levels. With PARLEDO you are well equipped in the future: The DALI versions are IoT-ready and can be regulated via TouchDIM.
Type of protection IP 65, dustproof and jet-proof.
Protection type IP 65 for luminaire and control gear on room and ceiling side.
Protection type IP 65 for luminaire and control gear on room and ceiling side.
DALI variants IoT-ready and dimming via TouchDIM possible.
Excellent glare control even with high luminous fluxes. Diffuser microprismatic: perfect for office areas (RUG ≤ 19) and environments with computer screens in accordance with EN 12464-1.
MultiLumen variants: you can choose between 4 levels of luminous flux which can be set and reversed on the external control unit.
The Cyanosis Observation Index (COI) describes the quality of the light spectrum of a luminaire for suitability for medical applications. Luminaires with a standardised COI of less than 3.3 are particularly suitable for reliable detection of cyanosis. Cyanosis is a bluish discolouration of the skin or the mucosa caused by a decrease in arterial oxygen saturation. This can be a symptom of dangerous disorders of the human organism. For an initial early visual diagnosis, the quality of light is crucial.
Qualified for use in the food and drink industry.
For high hygienic requirements. Diffuser with smooth surface on the room side for low sensitivity to dirt and easy cleaning.
Frameless appearance in the modular ceiling thanks to the extra slim frame.
Particularly suitable for the requirements of treatment rooms in healthcare facilities, in accordance with EN 12464 (RUG ≤19, CRI >90).
PARLEDO in application
Architecture
- Clean: For high hygienic requirements.
- Hygienic: Diffuser made from resistant polycarbonate (PC) with smooth surface on room side for low sensitivity to dirt and and easy cleaning.
- Advantageous: Particularly suitable for use in healthcare and industry.
- True colours: Model with light colour 940 suitable for medical applications in accordance with the Cyanosis Observation Index (COI <3.3).
- Tested: Qualified for use in the food and drink industry.
- Filigree: Frameless appearance in the modular ceiling thanks to the extra slim frame.
Lighting planning
- Anti-glare: Diffuser microprismatic: perfect for office areas (RUG ≤ 19) and environments with computer screens in accordance with EN 12464-1.
- Reliable planning: Excellent glare control even with high luminous fluxes.
- MultiLumen: Luminous flux variable in 4 steps.
- Optimum: Colour tolerance within 3-steps MacAdam (3 SDCM).
- Long service life: LED rated life 60000 h (L80).
- Efficient: Luminous efficacy up to 147 lm/W.
Installation
- Protected: Protection type IP 65 for luminaire and control gear on room and ceiling side.
- Robust: Impact resistance IK06 for high impact resistance.
- Uniform: Flicker - DALI ≤ 1%, MultiLumen < 5%.
- Plannable: Easy to install thanks to extended connection cable (2 m).
- Integrated: Suitable for through wiring as standard.
- Future-proof: DALI variants IoT-ready.
