LINEDO 50 – Continuous line luminaire

Fast and easy installation.

Ultra-fast installation.

Environmentally friendly and resource-saving due to replaceable components.

These luminaire series are designed, manufactured and tested at our company headquarters in Germany.

The high-speed continuous line luminaire

The revolution continues. Discover our latest addition to RZB's range of continuous-line luminaire systems, tailor-made for industry and logistics. With outstanding performance and German quality standards, LINEDO 50 is a real game changer in terms of efficiency and installation time.

Our single-component solution, made in Germany, enables effortless 1:1 replacement of your old continuous line luminaire in no time at all and with no costly refurbishment - and at "high speed".

Whether replacing luminaires or fitting new ones, LINEDO 50's single-component concept and clever accessories keep you in pole position in the installation race.

Brochure

Download PDF

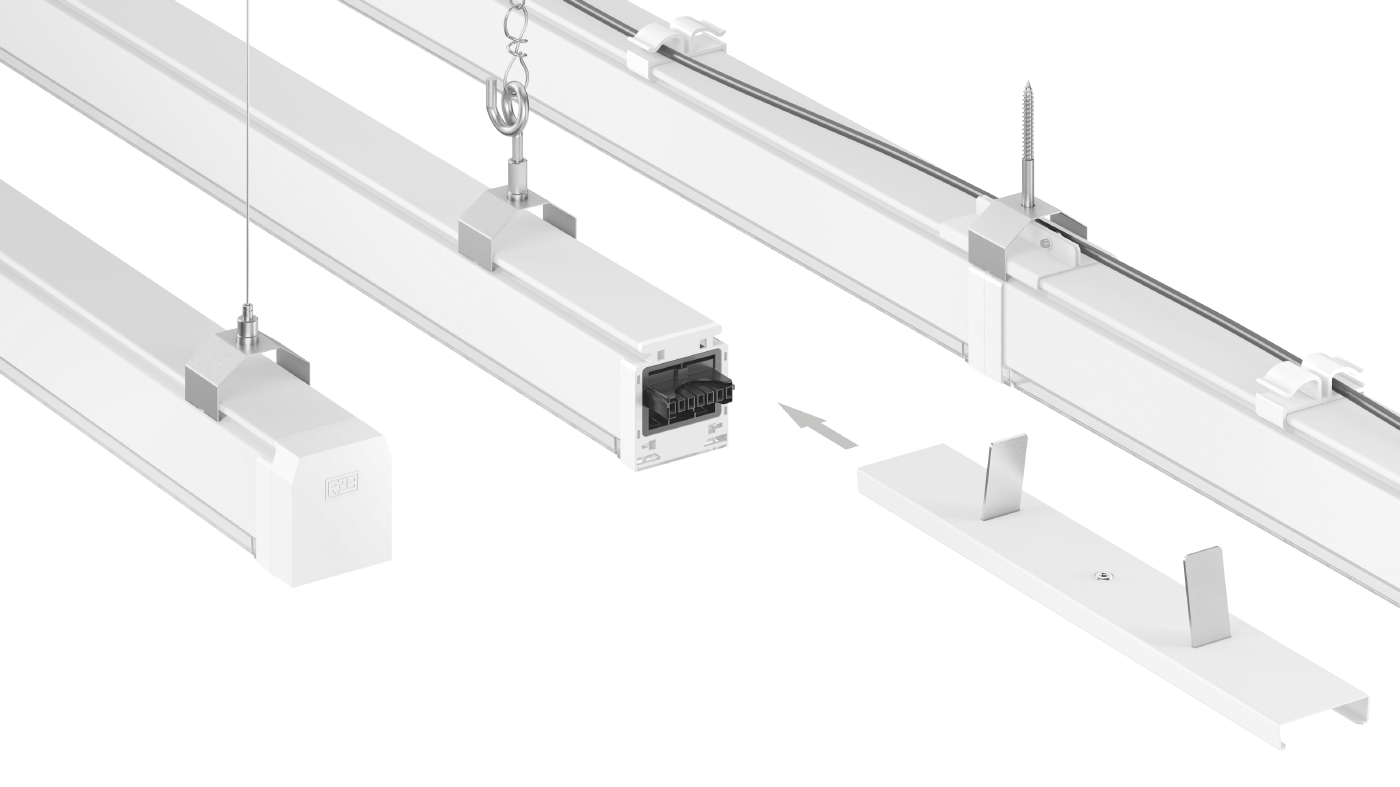

The mounting clips for suspension and ceiling mounting clip onto the profile from the outside. Easy to slide when load-free, firmly clamped when under load.

Each LINEDO 50 module has a LINEDO 50 plug at one end and the corresponding socket at the other end.
Suitable end caps are available for a clean finish at the end of the continuous line luminaire.

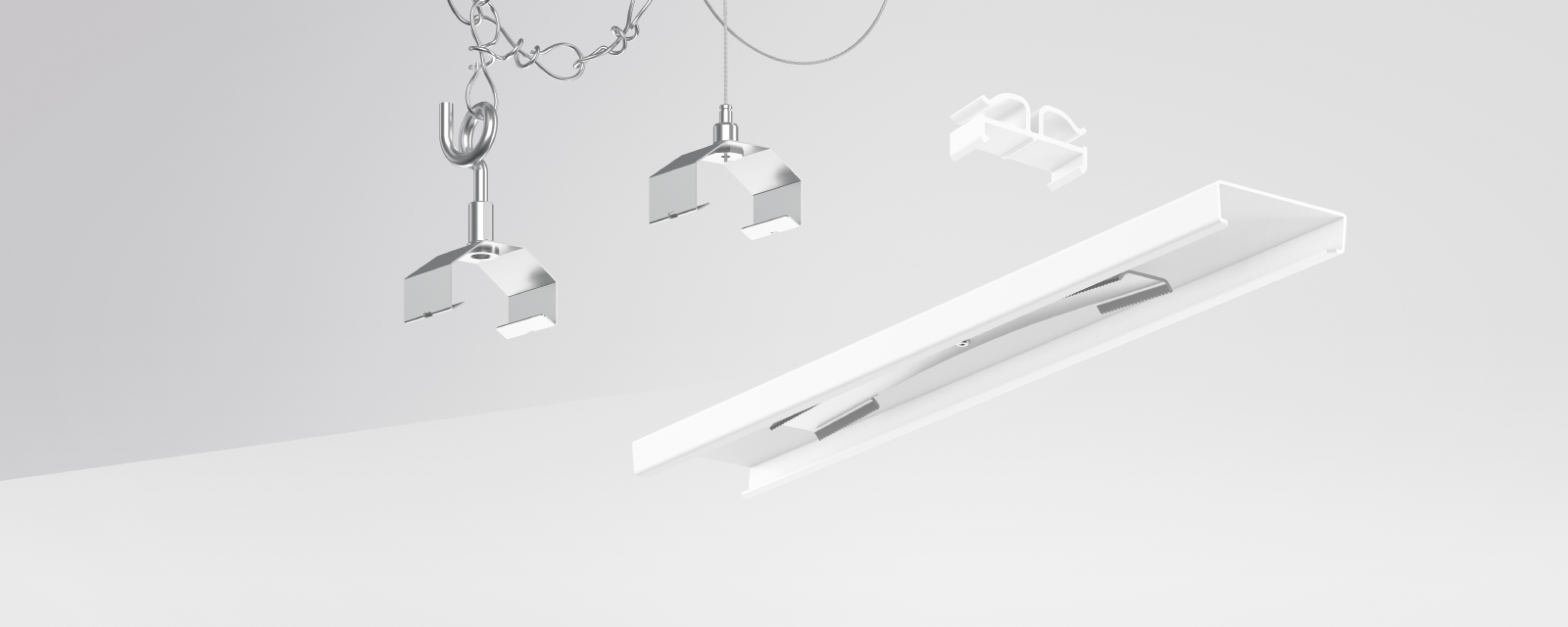

Pendant suspension for chain

Cable holder for routing additional connection and control cables – for example for emergency lighting.

Mounting clamps for ceiling mounting.

Patented module connector for tool-free connection of each joint between modules.

Experience LINEDO 50 in action...

LINEDO 50 in application

Architecture

Perfect: Ready to install, single component continuous line luminaire system.
Clever: Complete modules in standard lengths, 1500, 3000 and 4500 mm for quick and easy refurbishment and significant reduction of installation costs and time.
Advantageous: Up to 8 years warranty.
Predestined: For uniform ambient lighting of wide areas and focussed lighting in industry and logistics.

Lighting planning

Reliable planning: 4 light distribution options and 3 performance levels cover just about any lighting requirement in industry and logistics.
Ideal: Special lens geometry for high-bay warehouse applications.
Efficient: Permanently low running costs thanks to luminous efficacy up to 190 lm/W and an LED rated life of up to 100000 h.
Outstanding: Extremely good Color over Angle (CoA). Special microstructures in the specially developed lens optics reduce the yellow corona (caused by chromatic aberration) to an absolute minimum.
Suitable: Perfect for 1:1 replacement during renovations.

Installation

Easy installation: Ultra-fast installation through Plug & Play modules.
Comfortable: Phase selection from outside due to plug-in system. Adjustment of a wide range of luminous fluxes using intelligent feeds.
Optimum: Sliding mounting brackets. Ideal for luminaire replacement.
Sustainable: Optimised packaging saves time during unpacking and disposal.
