TRIONA square
312447.0031.730

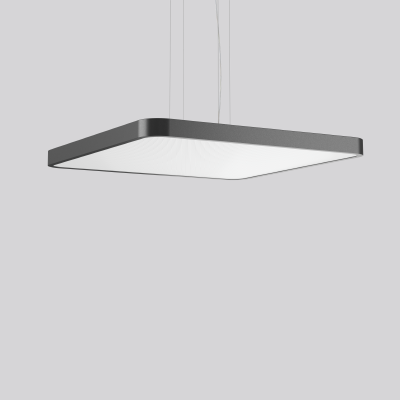

Decorative square LED pendant-mounted surface luminaire. Flat, seamless frame: aluminium extrusion profile, powder coated. Cover made of sheet steel, powder-coated. Canopy made of aluminium, powder-coated. Direct light emission through a diffuser made of non-yellowing plastic (PMMA) microprismatic.Indirect light emission through a flush diffuser made of satin-finish plastic. LED backlight technology for homogeneous illumination of the entire light-emitting surface. Direct 70%, indirect 30% light emission. 4-point steel cable suspension, steplessly adjustable. Easy installation with transparent, adjustable pendant cable and canopy with magnetic fixing. Driver integrated. Dimmable DALI. Suitable for through-wiring. With Casambi smart+free Bluetooth® control for wireless network and operation using Android / iOS devices, free app available for download.
Technical Specifications
| Length L | 825 mm |
|---|---|
| Width B | 825 mm |
| Height H | 52 mm |
| Suspension length LP | 500-1200 mm |
| Weight | 17 kg |
| Light source | LED |
| Colour temperature | ↓3000 K | ↑3000 K |
| Rated luminous flux | 13800 lm |
| System power | 110 W |
| System efficiency | 125 lm/W |
| Glare evaluation RUG (4H 8H) | 17,2 |
| Beam angle |
down 95°/93° up 106°/106° |
| Rated life | 50000 h (L90/B50) |
| Colour rendering index (CRI) | 80 |
| Colour tolerance (McAdam) | 3 SDCM |
| Photobiological safety according to EN 62471 | Risk group 1 |
| Driver | Converter, dimmable |
| Control | smart+free (Bluetooth) |
| Voltage | 220 - 240 V / 50 Hz, 60 Hz |
| Luminaires on B10A fuse | 12 |
| Luminaires on B16A fuse | 20 |
| Luminaires on C10A fuse | 21 |
| Luminaires on C16A fuse | 33 |
| Inrush current / Inrush current duration | 20 A / 200 µs |
| CIE Flux Code / CEN Flux Code | 58 86 97 68 100 |
| Type of protection | IP 20 |
| Protection class | I |
| Filament test | 650 °C |
| Impact resistance | IK03 |
| Ambient temperature | -20 °C bis + 35 °C |
| Conformity mark | CE |
